How to add a custom module into the NEORV32 RISC-V Processor
Overview
Due to the customizable ability of the NEORV32 Processor, here we are going to go through the process of adding a custom module. Here we are going to add a Cyclic Redundancy Check (CRC32) module as an example. For this we are going to use the Nexys A7 Board. You can also find this same tutorial under the NEORV32 - Community Projects.
Introduction
After reading the user guide and having an idea of how the NEORV32 executes programs, you are ready to put hands on how to add your custom module.
Cyclic Redundancy Check (CRC32)
In order to implement a custom module, we have to look into the CFS module first.

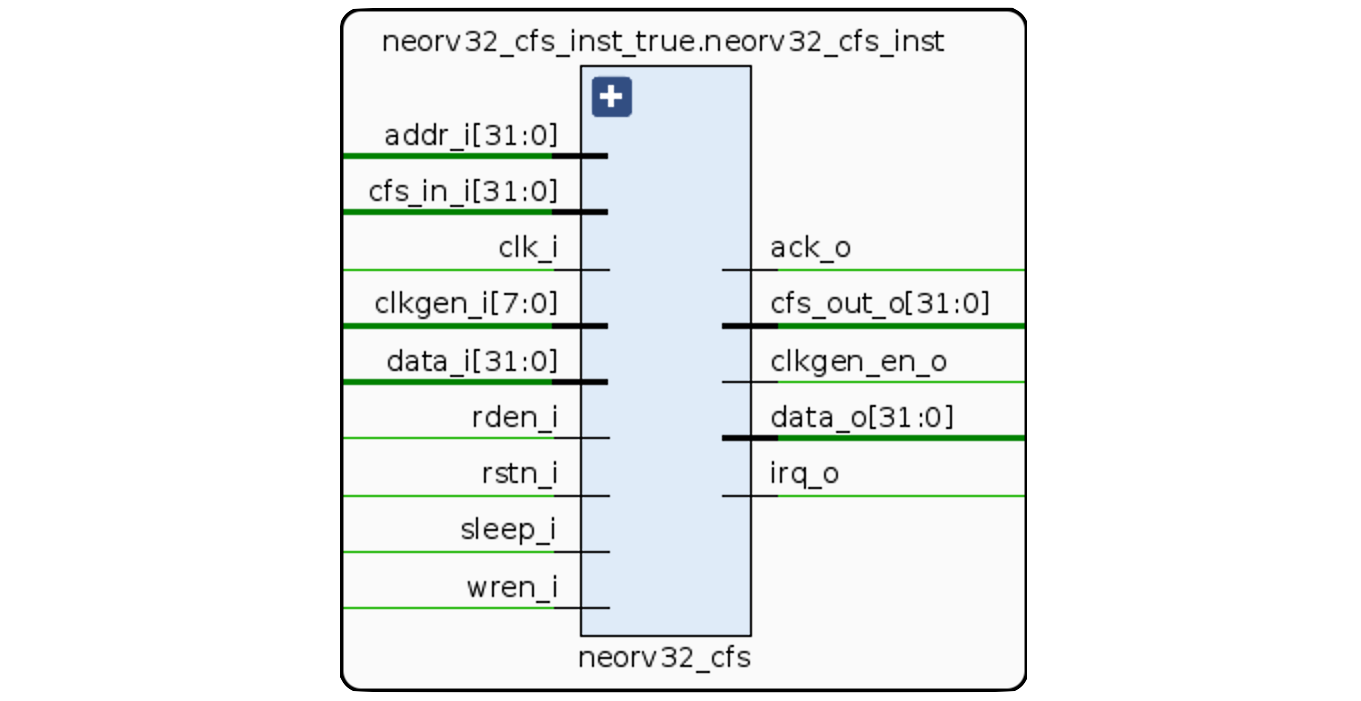

Custom Functions Subsystem (CFS)
The CFS module provides 32x32-bit memory-mapped registers as an "example/illustrating template" to be modified in the case of implementing design custom logic. So, this is the first module you want to start to play with. In the same way, the CFS module is well commented. Have a read of it before we carry on.
Also as a rule of thumb, it is good to use the CFS first and test functionality there before you start modifying existing components or adding completely new modules. Due to the simplicity of the CRC32 code, we are going to proceed directly creating the module! You can read more about the CRC error detection.
Once you have a general idea of the how the CFS is structured, we can duplicate it and modify it to create our CRC32 module.
Now we proceed to create and add to the processor our own CRC32 module called neorv32_crc32.vhd with our own CRC32 implementation.
121 -- CRC32 Function Core ----------------------------------------------------------------------
122 -- -------------------------------------------------------------------------------------------
123 -- This is where the actual functionality can be implemented.
124 -- In this example we are just implementing four r/w registers that invert any value written to them.
125 -- crc32_reg_wr(0)(7 downto 0) -- 8-bit data
126 -- crc32_reg_wr(1) -- intemediate Result
127 -- crc32_reg_rd(1) -- final Result
128
129 cr32_core: process(crc32_reg_wr(0))
130 begin
131
132 crc32_reg_rd(1)(0) <= (crc32_reg_wr(1)(2) xor crc32_reg_wr(1)(8) xor crc32_reg_wr(0)(2));
133 crc32_reg_rd(1)(1) <= (crc32_reg_wr(1)(0) xor crc32_reg_wr(1)(3) xor crc32_reg_wr(1)(9) xor crc32_reg_wr(0)(0) xor crc32_reg_wr(0)(3));
134 crc32_reg_rd(1)(2) <= (crc32_reg_wr(1)(0) xor crc32_reg_wr(1)(1) xor crc32_reg_wr(1)(4) xor crc32_reg_wr(1)(10) xor crc32_reg_wr(0)(0) xor crc32_reg_wr(0)(1) xor crc32_reg_wr(0)(4));
135 crc32_reg_rd(1)(3) <= (crc32_reg_wr(1)(1) xor crc32_reg_wr(1)(2) xor crc32_reg_wr(1)(5) xor crc32_reg_wr(1)(11) xor crc32_reg_wr(0)(1) xor crc32_reg_wr(0)(2) xor crc32_reg_wr(0)(5));
136 crc32_reg_rd(1)(4) <= (crc32_reg_wr(1)(0) xor crc32_reg_wr(1)(2) xor crc32_reg_wr(1)(3) xor crc32_reg_wr(1)(6) xor crc32_reg_wr(1)(12) xor crc32_reg_wr(0)(0) xor crc32_reg_wr(0)(2) xor crc32_reg_wr(0)(3) xor crc32_reg_wr(0)(6));
137 crc32_reg_rd(1)(5) <= (crc32_reg_wr(1)(1) xor crc32_reg_wr(1)(3) xor crc32_reg_wr(1)(4) xor crc32_reg_wr(1)(7) xor crc32_reg_wr(1)(13) xor crc32_reg_wr(0)(1) xor crc32_reg_wr(0)(3) xor crc32_reg_wr(0)(4) xor crc32_reg_wr(0)(7));
138 crc32_reg_rd(1)(6) <= (crc32_reg_wr(1)(4) xor crc32_reg_wr(1)(5) xor crc32_reg_wr(1)(14) xor crc32_reg_wr(0)(4) xor crc32_reg_wr(0)(5));
139 crc32_reg_rd(1)(7) <= (crc32_reg_wr(1)(0) xor crc32_reg_wr(1)(5) xor crc32_reg_wr(1)(6) xor crc32_reg_wr(1)(15) xor crc32_reg_wr(0)(0) xor crc32_reg_wr(0)(5) xor crc32_reg_wr(0)(6));
140 crc32_reg_rd(1)(8) <= (crc32_reg_wr(1)(1) xor crc32_reg_wr(1)(6) xor crc32_reg_wr(1)(7) xor crc32_reg_wr(1)(16) xor crc32_reg_wr(0)(1) xor crc32_reg_wr(0)(6) xor crc32_reg_wr(0)(7));
141 crc32_reg_rd(1)(9) <= (crc32_reg_wr(1)(7) xor crc32_reg_wr(1)(17) xor crc32_reg_wr(0)(7));
142 crc32_reg_rd(1)(10) <= (crc32_reg_wr(1)(2) xor crc32_reg_wr(1)(18) xor crc32_reg_wr(0)(2));
143 crc32_reg_rd(1)(11) <= (crc32_reg_wr(1)(3) xor crc32_reg_wr(1)(19) xor crc32_reg_wr(0)(3));
144 crc32_reg_rd(1)(12) <= (crc32_reg_wr(1)(0) xor crc32_reg_wr(1)(4) xor crc32_reg_wr(1)(20) xor crc32_reg_wr(0)(0) xor crc32_reg_wr(0)(4));
145 crc32_reg_rd(1)(13) <= (crc32_reg_wr(1)(0) xor crc32_reg_wr(1)(1) xor crc32_reg_wr(1)(5) xor crc32_reg_wr(1)(21) xor crc32_reg_wr(0)(0) xor crc32_reg_wr(0)(1) xor crc32_reg_wr(0)(5));
146 crc32_reg_rd(1)(14) <= (crc32_reg_wr(1)(1) xor crc32_reg_wr(1)(2) xor crc32_reg_wr(1)(6) xor crc32_reg_wr(1)(22) xor crc32_reg_wr(0)(1) xor crc32_reg_wr(0)(2) xor crc32_reg_wr(0)(6));
147 crc32_reg_rd(1)(15) <= (crc32_reg_wr(1)(2) xor crc32_reg_wr(1)(3) xor crc32_reg_wr(1)(7) xor crc32_reg_wr(1)(23) xor crc32_reg_wr(0)(2) xor crc32_reg_wr(0)(3) xor crc32_reg_wr(0)(7));
148 crc32_reg_rd(1)(16) <= (crc32_reg_wr(1)(0) xor crc32_reg_wr(1)(2) xor crc32_reg_wr(1)(3) xor crc32_reg_wr(1)(4) xor crc32_reg_wr(1)(24) xor crc32_reg_wr(0)(0) xor crc32_reg_wr(0)(2) xor crc32_reg_wr(0)(3) xor crc32_reg_wr(0)(4));
149 crc32_reg_rd(1)(17) <= (crc32_reg_wr(1)(0) xor crc32_reg_wr(1)(1) xor crc32_reg_wr(1)(3) xor crc32_reg_wr(1)(4) xor crc32_reg_wr(1)(5) xor crc32_reg_wr(1)(25) xor crc32_reg_wr(0)(0) xor crc32_reg_wr(0)(1) xor crc32_reg_wr(0)(3) xor crc32_reg_wr(0)(4) xor crc32_reg_wr(0)(5));
150 crc32_reg_rd(1)(18) <= (crc32_reg_wr(1)(0) xor crc32_reg_wr(1)(1) xor crc32_reg_wr(1)(2) xor crc32_reg_wr(1)(4) xor crc32_reg_wr(1)(5) xor crc32_reg_wr(1)(6) xor crc32_reg_wr(1)(26) xor crc32_reg_wr(0)(0) xor crc32_reg_wr(0)(1) xor crc32_reg_wr(0)(2) xor crc32_reg_wr(0)(4) xor crc32_reg_wr(0)(5) xor crc32_reg_wr(0)(6));
151 crc32_reg_rd(1)(19) <= (crc32_reg_wr(1)(1) xor crc32_reg_wr(1)(2) xor crc32_reg_wr(1)(3) xor crc32_reg_wr(1)(5) xor crc32_reg_wr(1)(6) xor crc32_reg_wr(1)(7) xor crc32_reg_wr(1)(27) xor crc32_reg_wr(0)(1) xor crc32_reg_wr(0)(2) xor crc32_reg_wr(0)(3) xor crc32_reg_wr(0)(5) xor crc32_reg_wr(0)(6) xor crc32_reg_wr(0)(7));
152 crc32_reg_rd(1)(20) <= (crc32_reg_wr(1)(3) xor crc32_reg_wr(1)(4) xor crc32_reg_wr(1)(6) xor crc32_reg_wr(1)(7) xor crc32_reg_wr(1)(28) xor crc32_reg_wr(0)(3) xor crc32_reg_wr(0)(4) xor crc32_reg_wr(0)(6) xor crc32_reg_wr(0)(7));
153 crc32_reg_rd(1)(21) <= (crc32_reg_wr(1)(2) xor crc32_reg_wr(1)(4) xor crc32_reg_wr(1)(5) xor crc32_reg_wr(1)(7) xor crc32_reg_wr(1)(29) xor crc32_reg_wr(0)(2) xor crc32_reg_wr(0)(4) xor crc32_reg_wr(0)(5) xor crc32_reg_wr(0)(7));
154 crc32_reg_rd(1)(22) <= (crc32_reg_wr(1)(2) xor crc32_reg_wr(1)(3) xor crc32_reg_wr(1)(5) xor crc32_reg_wr(1)(6) xor crc32_reg_wr(1)(30) xor crc32_reg_wr(0)(2) xor crc32_reg_wr(0)(3) xor crc32_reg_wr(0)(5) xor crc32_reg_wr(0)(6));
155 crc32_reg_rd(1)(23) <= (crc32_reg_wr(1)(3) xor crc32_reg_wr(1)(4) xor crc32_reg_wr(1)(6) xor crc32_reg_wr(1)(7) xor crc32_reg_wr(1)(31) xor crc32_reg_wr(0)(3) xor crc32_reg_wr(0)(4) xor crc32_reg_wr(0)(6) xor crc32_reg_wr(0)(7));
156 crc32_reg_rd(1)(24) <= (crc32_reg_wr(1)(0) xor crc32_reg_wr(1)(2) xor crc32_reg_wr(1)(4) xor crc32_reg_wr(1)(5) xor crc32_reg_wr(1)(7) xor crc32_reg_wr(0)(0) xor crc32_reg_wr(0)(2) xor crc32_reg_wr(0)(4) xor crc32_reg_wr(0)(5) xor crc32_reg_wr(0)(7));
157 crc32_reg_rd(1)(25) <= (crc32_reg_wr(1)(0) xor crc32_reg_wr(1)(1) xor crc32_reg_wr(1)(2) xor crc32_reg_wr(1)(3) xor crc32_reg_wr(1)(5) xor crc32_reg_wr(1)(6) xor crc32_reg_wr(0)(0) xor crc32_reg_wr(0)(1) xor crc32_reg_wr(0)(2) xor crc32_reg_wr(0)(3) xor crc32_reg_wr(0)(5) xor crc32_reg_wr(0)(6));
158 crc32_reg_rd(1)(26) <= (crc32_reg_wr(1)(0) xor crc32_reg_wr(1)(1) xor crc32_reg_wr(1)(2) xor crc32_reg_wr(1)(3) xor crc32_reg_wr(1)(4) xor crc32_reg_wr(1)(6) xor crc32_reg_wr(1)(7) xor crc32_reg_wr(0)(0) xor crc32_reg_wr(0)(1) xor crc32_reg_wr(0)(2) xor crc32_reg_wr(0)(3) xor crc32_reg_wr(0)(4) xor crc32_reg_wr(0)(6) xor crc32_reg_wr(0)(7));
159 crc32_reg_rd(1)(27) <= (crc32_reg_wr(1)(1) xor crc32_reg_wr(1)(3) xor crc32_reg_wr(1)(4) xor crc32_reg_wr(1)(5) xor crc32_reg_wr(1)(7) xor crc32_reg_wr(0)(1) xor crc32_reg_wr(0)(3) xor crc32_reg_wr(0)(4) xor crc32_reg_wr(0)(5) xor crc32_reg_wr(0)(7));
160 crc32_reg_rd(1)(28) <= (crc32_reg_wr(1)(0) xor crc32_reg_wr(1)(4) xor crc32_reg_wr(1)(5) xor crc32_reg_wr(1)(6) xor crc32_reg_wr(0)(0) xor crc32_reg_wr(0)(4) xor crc32_reg_wr(0)(5) xor crc32_reg_wr(0)(6));
161 crc32_reg_rd(1)(29) <= (crc32_reg_wr(1)(0) xor crc32_reg_wr(1)(1) xor crc32_reg_wr(1)(5) xor crc32_reg_wr(1)(6) xor crc32_reg_wr(1)(7) xor crc32_reg_wr(0)(0) xor crc32_reg_wr(0)(1) xor crc32_reg_wr(0)(5) xor crc32_reg_wr(0)(6) xor crc32_reg_wr(0)(7));
162 crc32_reg_rd(1)(30) <= (crc32_reg_wr(1)(0) xor crc32_reg_wr(1)(1) xor crc32_reg_wr(1)(6) xor crc32_reg_wr(1)(7) xor crc32_reg_wr(0)(0) xor crc32_reg_wr(0)(1) xor crc32_reg_wr(0)(6) xor crc32_reg_wr(0)(7));
163 crc32_reg_rd(1)(31) <= (crc32_reg_wr(1)(1) xor crc32_reg_wr(1)(7) xor crc32_reg_wr(0)(1) xor crc32_reg_wr(0)(7));
164
165 end process cr32_core;
Note: Please have a look and compare neorv32_crc32.vhd and neorv32_cfs.vhd and you will see the similarities!
This logic simply takes and 8-bit data input crc32_reg_wr(0)(7 downto 0) and perform the CRC32 calculations and gives the result in crc32_reg_rd(1). This also logic is executed any time when the input (crc32_reg_wr(0)) changes.
(If you are using Vivado don't forget to add it into the sources)
Files to be modified
Next step is modify the following files:
-
Main VHDL package file - neorv32_package.vhd
We modify the Custom Functions Subsystem (CFS) module in the External Interface Types to have space for our new CRC32 module:
~/rtl/core/neorv32_package.vhd#L137-L176:
@@ -137,7 +137,7 @@ package neorv32_package is -- Custom Functions Subsystem (CFS) -- constant cfs_base_c : std_ulogic_vector(data_width_c-1 downto 0) := x"fffffe00"; -- base address - constant cfs_size_c : natural := 32*4; -- module's address space in bytes + constant cfs_size_c : natural := 30*4; -- module's address space in bytes constant cfs_reg0_addr_c : std_ulogic_vector(data_width_c-1 downto 0) := x"fffffe00"; constant cfs_reg1_addr_c : std_ulogic_vector(data_width_c-1 downto 0) := x"fffffe04"; constant cfs_reg2_addr_c : std_ulogic_vector(data_width_c-1 downto 0) := x"fffffe08"; @@ -168,8 +168,12 @@ package neorv32_package is constant cfs_reg27_addr_c : std_ulogic_vector(data_width_c-1 downto 0) := x"fffffe6c"; constant cfs_reg28_addr_c : std_ulogic_vector(data_width_c-1 downto 0) := x"fffffe70"; constant cfs_reg29_addr_c : std_ulogic_vector(data_width_c-1 downto 0) := x"fffffe74"; - constant cfs_reg30_addr_c : std_ulogic_vector(data_width_c-1 downto 0) := x"fffffe78"; - constant cfs_reg31_addr_c : std_ulogic_vector(data_width_c-1 downto 0) := x"fffffe7c"; + + -- Cyclic Redundancy Check (CRC32) -- + constant crc32_base_c : std_ulogic_vector(data_width_c-1 downto 0) := x"fffffe78"; -- base address + constant crc32_size_c : natural := 2*4; -- module's address space in bytes + constant crc32_in_addr_c : std_ulogic_vector(data_width_c-1 downto 0) := x"fffffe78"; + constant crc32_out_addr_c : std_ulogic_vector(data_width_c-1 downto 0) := x"fffffe7c"; -- Pulse-Width Modulation Controller (PWM) -- constant pwm_base_c : std_ulogic_vector(data_width_c-1 downto 0) := x"fffffe80"; -- base addressNow we add the
IO_CRC32_ENflag in the package:~/rtl/core/neorv32_package.vhd#L960-L962:
@@ -954,7 +958,8 @@ package neorv32_package is IO_CFS_IN_SIZE : positive := 32; -- size of CFS input conduit in bits IO_CFS_OUT_SIZE : positive := 32; -- size of CFS output conduit in bits IO_NEOLED_EN : boolean := false; -- implement NeoPixel-compatible smart LED interface (NEOLED)? - IO_NEOLED_TX_FIFO : natural := 1 -- NEOLED TX FIFO depth, 1..32k, has to be a power of two + IO_NEOLED_TX_FIFO : natural := 1; -- NEOLED TX FIFO depth, 1..32k, has to be a power of two + IO_CRC32_EN : boolean := false -- implement Cyclic Redundancy Check (CRC32)? ); port ( -- Global control --Now we add the inputs and outputs of our CRC32 module:
~/rtl/core/neorv32_package.vhd#L1023-L1025:
@@ -1015,6 +1020,9 @@ package neorv32_package is -- Custom Functions Subsystem IO -- cfs_in_i : in std_ulogic_vector(IO_CFS_IN_SIZE-1 downto 0) := (others => 'U'); -- custom CFS inputs conduit cfs_out_o : out std_ulogic_vector(IO_CFS_OUT_SIZE-1 downto 0); -- custom CFS outputs conduit + -- Cyclic Redundancy Check (CRC32) IO -- + crc32_in_i : in std_ulogic_vector(31 downto 0); -- crc32 inputs + crc32_out_o : out std_ulogic_vector(31 downto 0); -- crc32 outputs -- NeoPixel-compatible smart LED interface (available if IO_NEOLED_EN = true) -- neoled_o : out std_ulogic; -- async serial data line -- System time --Next we add the CRC32 component:
~/rtl/core/neorv32_package.vhd#L1821-L1840:
@@ -1809,6 +1817,26 @@ package neorv32_package is cfs_out_o : out std_ulogic_vector(CFS_OUT_SIZE-1 downto 0) -- custom outputs ); end component; + + + -- Component: Cyclic Redundancy Check (CRC32) -------------------------------------------- + -- ------------------------------------------------------------------------------------------- + component neorv32_crc32 + port ( + -- host access -- + clk_i : in std_ulogic; -- global clock line + rstn_i : in std_ulogic; -- global reset line, low-active, use as async + addr_i : in std_ulogic_vector(31 downto 0); -- address + rden_i : in std_ulogic; -- read enable + wren_i : in std_ulogic; -- word write enable + data_i : in std_ulogic_vector(31 downto 0); -- data in + data_o : out std_ulogic_vector(31 downto 0); -- data out + ack_o : out std_ulogic; -- transfer acknowledge + -- custom io (conduit) -- + crc32_in_i : in std_ulogic_vector(31 downto 0); -- custom inputs + crc32_out_o : out std_ulogic_vector(31 downto 0) -- custom outputs + ); + end component; -- Component: Smart LED (WS2811/WS2812) Interface (NEOLED) -------------------------------- -- -------------------------------------------------------------------------------------------Due to the fact we added the
IO_CRC32_ENflag, we also have to update it here in the package:~/rtl/core/neorv32_package.vhd#L1973-L1974:
@@ -1942,7 +1970,8 @@ package neorv32_package is IO_CFS_EN : boolean; -- implement custom functions subsystem (CFS)? IO_SLINK_EN : boolean; -- implement stream link interface? IO_NEOLED_EN : boolean; -- implement NeoPixel-compatible smart LED interface (NEOLED)? - IO_XIRQ_NUM_CH : natural -- number of external interrupt (XIRQ) channels to implement + IO_XIRQ_NUM_CH : natural; -- number of external interrupt (XIRQ) channels to implement + IO_CRC32_EN : boolean -- implement Cyclic Redundancy Check (CRC32)? ); port ( -- host access -- -
System/Processor Configuration Information Memory (SYSINFO) - neorv32_sysinfo.vhd
Add the
IO_CRC32_ENflag we added previously:~/rtl/core/neorv32_sysinfo.vhd#L95:
@@ -91,7 +91,8 @@ entity neorv32_sysinfo is IO_CFS_EN : boolean; -- implement custom functions subsystem (CFS)? IO_SLINK_EN : boolean; -- implement stream link interface? IO_NEOLED_EN : boolean; -- implement NeoPixel-compatible smart LED interface (NEOLED)? - IO_XIRQ_NUM_CH : natural -- number of external interrupt (XIRQ) channels to implement + IO_XIRQ_NUM_CH : natural; -- number of external interrupt (XIRQ) channels to implement + IO_CRC32_EN : boolean -- implement Cyclic Redundancy Check (CRC32)? ); port ( -- host access --Add one bit for the CRC32 flag in the System Information Memory (SYSINFO):
~/rtl/core/neorv32_sysinfo.vhd#L185-L187:
@@ -181,8 +182,9 @@ begin sysinfo_mem(2)(26) <= bool_to_ulogic_f(IO_UART1_EN); -- secondary universal asynchronous receiver/transmitter (UART1) implemented? sysinfo_mem(2)(27) <= bool_to_ulogic_f(IO_NEOLED_EN); -- NeoPixel-compatible smart LED interface (NEOLED) implemented? sysinfo_mem(2)(28) <= bool_to_ulogic_f(boolean(IO_XIRQ_NUM_CH > 0)); -- external interrupt controller (XIRQ) implemented? + sysinfo_mem(2)(29) <= bool_to_ulogic_f(IO_CRC32_EN); -- Cyclic Redundancy Check (CRC32) implemented? -- - sysinfo_mem(2)(31 downto 29) <= (others => '0'); -- reserved + sysinfo_mem(2)(31 downto 30) <= (others => '0'); -- reserved -- SYSINFO(3): Cache configuration -- sysinfo_mem(3)(03 downto 00) <= std_ulogic_vector(to_unsigned(index_size_f(ICACHE_BLOCK_SIZE), 4)) when (ICACHE_EN = true) else (others => '0'); -- i-cache: log2(block_size_in_bytes) -
Processor Top Entity - neorv32_top.vhd
Add the
IO_CRC32_ENflag we added previously:~/rtl/core/neorv32_top.vhd#L135:
@@ -131,7 +131,8 @@ entity neorv32_top is IO_CFS_IN_SIZE : positive := 32; -- size of CFS input conduit in bits IO_CFS_OUT_SIZE : positive := 32; -- size of CFS output conduit in bits IO_NEOLED_EN : boolean := false; -- implement NeoPixel-compatible smart LED interface (NEOLED)? - IO_NEOLED_TX_FIFO : natural := 1 -- NEOLED TX FIFO depth, 1..32k, has to be a power of two + IO_NEOLED_TX_FIFO : natural := 1; -- NEOLED TX FIFO depth, 1..32k, has to be a power of two + IO_CRC32_EN : boolean := false -- implement Cyclic Redundancy Check (CRC32)? ); port ( -- Global control --Now we add the inputs and outputs of our CRC32 module:
~/rtl/core/neorv32_top.vhd#L208-L211:
@@ -204,6 +205,10 @@ entity neorv32_top is -- Custom Functions Subsystem IO (available if IO_CFS_EN = true) -- cfs_in_i : in std_ulogic_vector(IO_CFS_IN_SIZE-1 downto 0) := (others => 'U'); -- custom CFS inputs conduit cfs_out_o : out std_ulogic_vector(IO_CFS_OUT_SIZE-1 downto 0); -- custom CFS outputs conduit + + -- Cyclic Redundancy Check (CRC32) IO (available if IO_CRC32_EN = true) -- + crc32_in_i : in std_ulogic_vector(31 downto 0); -- crc32 inputs + crc32_out_o : out std_ulogic_vector(31 downto 0); -- crc32 outputs -- NeoPixel-compatible smart LED interface (available if IO_NEOLED_EN = true) -- neoled_o : out std_ulogic; -- async serial data lineAdd
RESP_CRC32for the response bus:~/rtl/core/neorv32_top.vhd#L315:
@@ -307,7 +312,7 @@ architecture neorv32_top_rtl of neorv32_top is -- module response bus - device ID -- type resp_bus_id_t is (RESP_IMEM, RESP_DMEM, RESP_BOOTROM, RESP_WISHBONE, RESP_GPIO, RESP_MTIME, RESP_UART0, RESP_UART1, RESP_SPI, - RESP_TWI, RESP_PWM, RESP_WDT, RESP_TRNG, RESP_CFS, RESP_NEOLED, RESP_SYSINFO, RESP_OCD, RESP_SLINK, RESP_XIRQ); + RESP_TWI, RESP_PWM, RESP_WDT, RESP_TRNG, RESP_CFS, RESP_CRC32, RESP_NEOLED, RESP_SYSINFO, RESP_OCD, RESP_SLINK, RESP_XIRQ); -- module response bus -- type resp_bus_t is array (resp_bus_id_t) of resp_bus_entry_t;Add the
IO_CRC32_ENto inform if the module is synthesized at the end:~/rtl/core/neorv32_top.vhd#L364:
@@ -356,6 +361,7 @@ begin cond_sel_string_f(IO_WDT_EN, "WDT ", "") & cond_sel_string_f(IO_TRNG_EN, "TRNG ", "") & cond_sel_string_f(IO_CFS_EN, "CFS ", "") & + cond_sel_string_f(IO_CRC32_EN, "CRC32 ", "") & cond_sel_string_f(io_slink_en_c, "SLINK ", "") & cond_sel_string_f(IO_NEOLED_EN, "NEOLED ", "") & cond_sel_string_f(boolean(XIRQ_NUM_CH > 0), "XIRQ ", "") &Add the CRC32 Instance:
~/rtl/core/neorv32_top.vhd#L915-L942:
@@ -906,6 +912,34 @@ begin cfs_out_o <= (others => '0'); end generate; + -- Cyclic Redundancy Check (CRC32) ------------------------------------------------------- + -- ------------------------------------------------------------------------------------------- + neorv32_crc32_inst_true: + if (IO_CRC32_EN = true) generate + neorv32_crc32_inst: neorv32_crc32 + port map ( + -- host access -- + clk_i => clk_i, -- global clock line + rstn_i => sys_rstn, -- global reset line, low-active, use as async + addr_i => p_bus.addr, -- address + rden_i => io_rden, -- read enable + wren_i => io_wren, -- byte write enable + data_i => p_bus.wdata, -- data in + data_o => resp_bus(RESP_CRC32).rdata, -- data out + ack_o => resp_bus(RESP_CRC32).ack, -- transfer acknowledge + -- CRC32 IO -- + crc32_in_i => crc32_in_i, -- crc32 inputs + crc32_out_o => crc32_out_o -- crc32 outputs + ); + resp_bus(RESP_CRC32).err <= '0'; -- no access error possible + end generate; + + neorv32_crc32_inst_false: + if (IO_CRC32_EN = false) generate + resp_bus(RESP_CRC32) <= resp_bus_entry_terminate_c; + crc32_out_o <= (others => '0'); + end generate; + -- General Purpose Input/Output Port (GPIO) ----------------------------------------------- -- -------------------------------------------------------------------------------------------Connect the
IO_CRC32_ENflag:~/rtl/core/neorv32_top.vhd#L1446:
@@ -1408,7 +1442,8 @@ begin IO_CFS_EN => IO_CFS_EN, -- implement custom functions subsystem (CFS)? IO_SLINK_EN => io_slink_en_c, -- implement stream link interface? IO_NEOLED_EN => IO_NEOLED_EN, -- implement NeoPixel-compatible smart LED interface (NEOLED)? - IO_XIRQ_NUM_CH => XIRQ_NUM_CH -- number of external interrupt (XIRQ) channels to implement + IO_XIRQ_NUM_CH => XIRQ_NUM_CH, -- number of external interrupt (XIRQ) channels to implement + IO_CRC32_EN => IO_CRC32_EN -- implement Cyclic Redundancy Check (CRC32)? ) port map ( -- host access -- -
Test Setup - neorv32_test_setup_bootloader.vhd
Add the I/O signals for the CRC32 module:
~/rtl/core/neorv32_test_setup_bootloader.vhd#L58-L61:
@@ -54,13 +54,17 @@ entity neorv32_test_setup_bootloader is gpio_o : out std_ulogic_vector(7 downto 0); -- parallel output -- UART0 -- uart0_txd_o : out std_ulogic; -- UART0 send data - uart0_rxd_i : in std_ulogic -- UART0 receive data + uart0_rxd_i : in std_ulogic; -- UART0 receive data + -- CRC32 -- + crc32_in_i : in std_ulogic_vector(31 downto 0); -- crc32 inputs + crc32_out_o : out std_ulogic_vector(7 downto 0) -- crc32 outputs (just 8-bits) to be displayed on the leds ); end entity; architecture neorv32_test_setup_bootloader_rtl of neorv32_test_setup_bootloader is signal con_gpio_o : std_ulogic_vector(63 downto 0); + signal con_crc32_o : std_ulogic_vector(31 downto 0); beginEnable the CRC module:
~/rtl/core/neorv32_test_setup_bootloader.vhd#L92:
@@ -84,7 +88,8 @@ begin -- Processor peripherals -- IO_GPIO_EN => true, -- implement general purpose input/output port unit (GPIO)? IO_MTIME_EN => true, -- implement machine system timer (MTIME)? - IO_UART0_EN => true -- implement primary universal asynchronous receiver/transmitter (UART0)? + IO_UART0_EN => true, -- implement primary universal asynchronous receiver/transmitter (UART0)? + IO_CRC32_EN => true -- implement Cyclic Redundancy Check (CRC32)? ) port map ( -- Global control --Connect the signals and set the output:
~/rtl/core/neorv32_test_setup_bootloader.vhd#L103:
@@ -94,11 +99,16 @@ begin gpio_o => con_gpio_o, -- parallel output -- primary UART0 (available if IO_UART0_EN = true) -- uart0_txd_o => uart0_txd_o, -- UART0 send data - uart0_rxd_i => uart0_rxd_i -- UART0 receive data + uart0_rxd_i => uart0_rxd_i, -- UART0 receive data + -- CRC32 + crc32_in_i => crc32_in_i, + crc32_out_o => con_crc32_o ); -- GPIO output -- gpio_o <= con_gpio_o(7 downto 0); + -- CRC32 output -- + crc32_out_o <= con_crc32_o(7 downto 0); end architecture; -
Nexys A7 - nexys_a7_test_setup.xdc
Configure the Nexys A7 for the inputs and outputs:
~/setups/vivado/nexys-a7-test-setup/nexys_a7_test_setup.xdc#L19-L26:
@@ -15,6 +15,16 @@ set_property -dict { PACKAGE_PIN V17 IOSTANDARD LVCMOS33 } [get_ports { gpio_o[ set_property -dict { PACKAGE_PIN U17 IOSTANDARD LVCMOS33 } [get_ports { gpio_o[6] }]; #IO_L17P_T2_A14_D30_14 Sch=led[6] set_property -dict { PACKAGE_PIN U16 IOSTANDARD LVCMOS33 } [get_ports { gpio_o[7] }]; #IO_L18P_T2_A12_D28_14 Sch=led[7] +## CRC32 +set_property -dict { PACKAGE_PIN V11 IOSTANDARD LVCMOS33 } [get_ports { crc32_out_o[0] }]; +set_property -dict { PACKAGE_PIN V12 IOSTANDARD LVCMOS33 } [get_ports { crc32_out_o[1] }]; +set_property -dict { PACKAGE_PIN V14 IOSTANDARD LVCMOS33 } [get_ports { crc32_out_o[2] }]; +set_property -dict { PACKAGE_PIN V15 IOSTANDARD LVCMOS33 } [get_ports { crc32_out_o[3] }]; +set_property -dict { PACKAGE_PIN T16 IOSTANDARD LVCMOS33 } [get_ports { crc32_out_o[4] }]; +set_property -dict { PACKAGE_PIN U14 IOSTANDARD LVCMOS33 } [get_ports { crc32_out_o[5] }]; +set_property -dict { PACKAGE_PIN T15 IOSTANDARD LVCMOS33 } [get_ports { crc32_out_o[6] }]; +set_property -dict { PACKAGE_PIN V16 IOSTANDARD LVCMOS33 } [get_ports { crc32_out_o[7] }]; + ## USB-UART Interface set_property -dict { PACKAGE_PIN D4 IOSTANDARD LVCMOS33 } [get_ports { uart0_txd_o }]; #IO_L11N_T1_SRCC_35 Sch=uart_rxd_out set_property -dict { PACKAGE_PIN C4 IOSTANDARD LVCMOS33 } [get_ports { uart0_rxd_i }]; #IO_L7P_T1_AD6P_35 Sch=uart_txd_in
You now can proceed to perform the synthesis and generate the bitstream and upload it to the board.
To test that this logic works, we then continue writing a test in the software folder. We can use the blink_led program to test it quickly.
Test Example
-
Cyclic Redundancy Check (CRC32) HW Driver - neorv32_crc32.c
Create a function to perform the CRC32 logic calculation:
#include "neorv32.h" #include "neorv32_crc32.h" /**********************************************************************//** * Check if custom functions unit 0 was synthesized. * * @return 0 if CRC32 was not synthesized, 1 if CRC32 is available. **************************************************************************/ int neorv32_crc32_available(void) { if (SYSINFO_FEATURES & (1 << SYSINFO_FEATURES_IO_CRC32)) { return 1; } else { return 0; } } /**********************************************************************//** * Cyclic Redundancy Check (CRC32) * * @return Current input port state (32-bit). **************************************************************************/ uint32_t neorv32_crc32(const char *s) { uint32_t result = 0; CRC32_OUTPUT = 0xFFFFFFFF; char c = 0; while ((c = *s++)) { CRC32_INPUT = (0x000000FF & c); result = ~CRC32_OUTPUT; CRC32_OUTPUT = CRC32_OUTPUT; } return result; }This function takes a string input and performs the CRC32 calculation.
-
Cyclic Redundancy Check (CRC32) HW Driver - neorv32_crc32.h
Create its respective header:
#ifndef neorv32_crc32_h #define neorv32_crc32_h // prototypes int neorv32_crc32_available(void); uint32_t neorv32_crc32(const char *s); #endif // neorv32_crc32_h -
Main Core Library File - neorv32.h
Add the memory addresses for our CRC32 Module:
~/sw/lib/include/neorv32.h#L545
~/sw/lib/include/neorv32.h#L607-L623
@@ -539,7 +542,7 @@ enum NEORV32_CLOCK_PRSC_enum { /** CFS base address */ #define CFS_BASE (0xFFFFFE00UL) // /**< CFS base address */ /** CFS address space size in bytes */ -#define CFS_SIZE (64*4) // /**< CFS address space size in bytes */ +#define CFS_SIZE (30*4) // /**< CFS address space size in bytes */ /** custom CFS register 0 */ #define CFS_REG_0 (*(IO_REG32 (CFS_BASE + 0))) // /**< (r)/(w): CFS register 0, user-defined */ @@ -601,10 +604,22 @@ enum NEORV32_CLOCK_PRSC_enum { #define CFS_REG_28 (*(IO_REG32 (CFS_BASE + 112))) // /**< (r)/(w): CFS register 28, user-defined */ /** custom CFS register 29 */ #define CFS_REG_29 (*(IO_REG32 (CFS_BASE + 116))) // /**< (r)/(w): CFS register 29, user-defined */ -/** custom CFS register 30 */ -#define CFS_REG_30 (*(IO_REG32 (CFS_BASE + 120))) // /**< (r)/(w): CFS register 30, user-defined */ -/** custom CFS register 31 */ -#define CFS_REG_31 (*(IO_REG32 (CFS_BASE + 124))) // /**< (r)/(w): CFS register 31, user-defined */ +/**@}*/ + + +/**********************************************************************//** + * @name IO Device: Cyclic Redundancy Check (CRC32) + **************************************************************************/ +/**@{*/ +/** CRC32 base address */ +#define CRC32_BASE (0xFFFFFE78UL) // /**< CRC32 base address */ +/** CRC32 address space size in bytes */ +#define CRC32_SIZE (2*4) // /**< CRC32 address space size in bytes */ + +/** CRC32 input register (r/w) */ +#define CRC32_INPUT (*(IO_REG32 (CRC32_BASE + 0))) +/** CRC32 output register (r/w) */ +#define CRC32_OUTPUT (*(IO_REG32 (CRC32_BASE + 4))) /**@}*/Add the CRC32 in the sysinfo enum:
~/sw/lib/include/neorv32.h#L1180:
@@ -1161,7 +1176,8 @@ enum NEORV32_SYSINFO_FEATURES_enum { SYSINFO_FEATURES_IO_SLINK = 25, /**< SYSINFO_FEATURES (25) (r/-): Stream link interface implemented when 1 (via SLINK_NUM_RX & SLINK_NUM_TX generics) */ SYSINFO_FEATURES_IO_UART1 = 26, /**< SYSINFO_FEATURES (26) (r/-): Secondary universal asynchronous receiver/transmitter 1 implemented when 1 (via IO_UART1_EN generic) */ SYSINFO_FEATURES_IO_NEOLED = 27, /**< SYSINFO_FEATURES (27) (r/-): NeoPixel-compatible smart LED interface implemented when 1 (via IO_NEOLED_EN generic) */ - SYSINFO_FEATURES_IO_XIRQ = 28 /**< SYSINFO_FEATURES (28) (r/-): External interrupt controller implemented when 1 (via XIRQ_NUM_IO generic) */ + SYSINFO_FEATURES_IO_XIRQ = 28, /**< SYSINFO_FEATURES (28) (r/-): External interrupt controller implemented when 1 (via XIRQ_NUM_IO generic) */ + SYSINFO_FEATURES_IO_CRC32 = 29 /**< SYSINFO_FEATURES (29) (r/-): Cyclic Redundancy Check (CRC32) */ }; /**********************************************************************//**Add the header file of the CRC32 module:
~/sw/lib/include/neorv32.h#L1223:
@@ -1204,6 +1220,7 @@ enum NEORV32_SYSINFO_FEATURES_enum { // io/peripheral devices #include "neorv32_cfs.h" +#include "neorv32_crc32.h" #include "neorv32_gpio.h" #include "neorv32_mtime.h" #include "neorv32_neoled.h" -
Blink led main.c
Add our
neorv32_crc32(const char *s)function in the main:~/sw/example/blink_led/main.c#L120-L121:
@@ -117,5 +117,7 @@ void blink_led_c(void) { while (1) { neorv32_gpio_port_set(cnt++ & 0xFF); // increment counter and mask for lowest 8 bit neorv32_cpu_delay_ms(200); // wait 200ms using busy wait + const char *sentence = "This is a Test text!"; + neorv32_uart0_printf("%s -> CRC-32: Ox%x \n", sentence ,neorv32_crc32(sentence)); } }
You now can proceed to perform the compilation of this test and upload the program into the board.
If everything goes well, you will have something like this:
Well done! You have added your own custom module! 🔥🔥🔥
